PostgreSQL is one of battle proven RDBMS (relational database management system) aside from mysql,mariadb and sql server. With proper tuning it could run on minimum virtual machine with limited memory and CPU.

Install postgresql on ubuntu server 24.04

Current server setup/landscape

  1. 1 gigs of ram and 1 virtual CPU
  2. 384mb of ram has been allocated to jupyter notebook podman
  3. the remaining resource +- 600mb will be fully utilized for postgresql
  4. jupyter notebook will only used for data visualization. all the ETL computation will be done on seperate spark cluster.

Below are the steps to install postgresql on lightweight VM with 1gb of ram and 1 virtual CPU

update ubuntu packages repository to the latest version and upgrade all old packages on the ubuntu server.

sudo apt update
sudo apt upgrade -y

install postgresql

sudo apt install -y postgresql

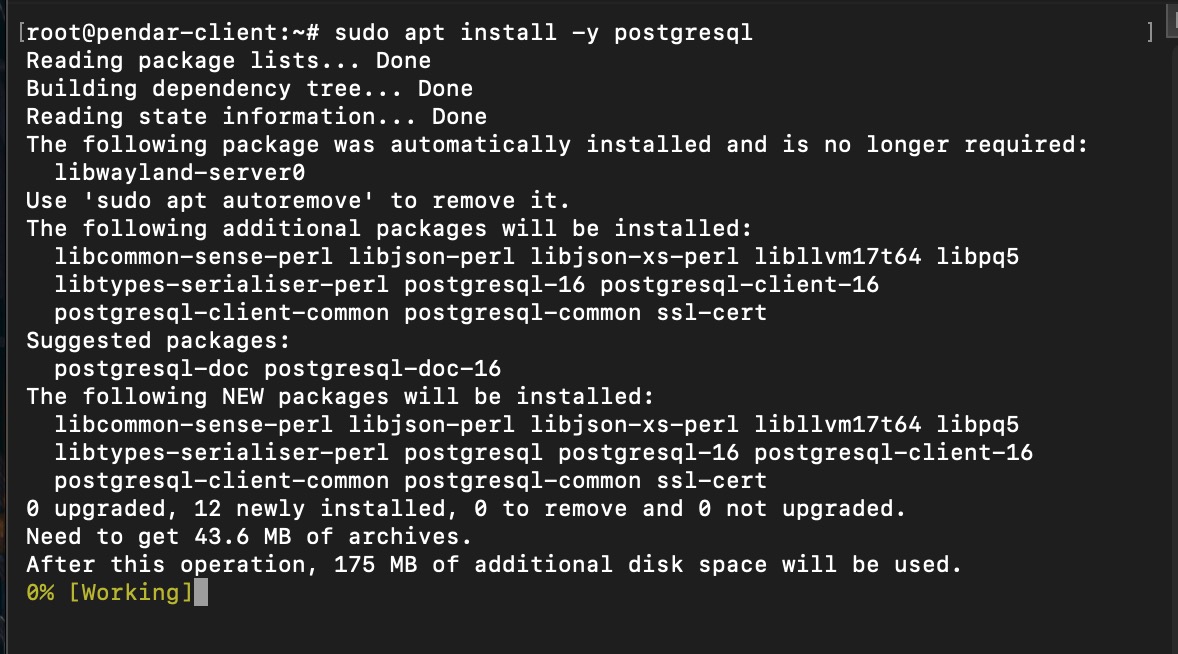

postimage100 Install postgresql on ubuntu server 24.04

once the installation is completed, execute following command to verify if the postgresql is installed properly

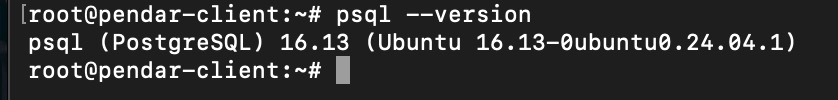

psql --version

it should retrn the installed postgresql version on the command line interface (cli)

postimage100 Check installed postgres version

enable postgresql services

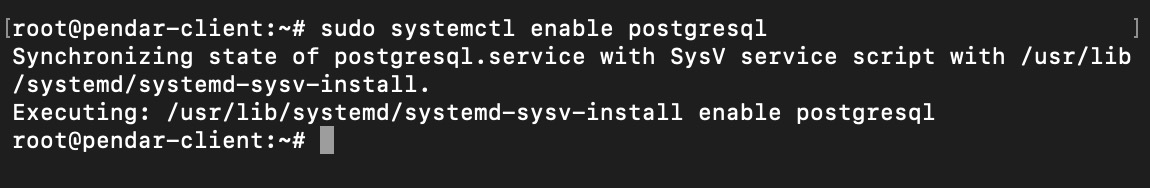

sudo systemctl enable postgresql

postimage100 Enable postgresql on ubuntu 24.04

start postgresql services

sudo systemctl start postgresql

validate if postgresql running properly (health status check)

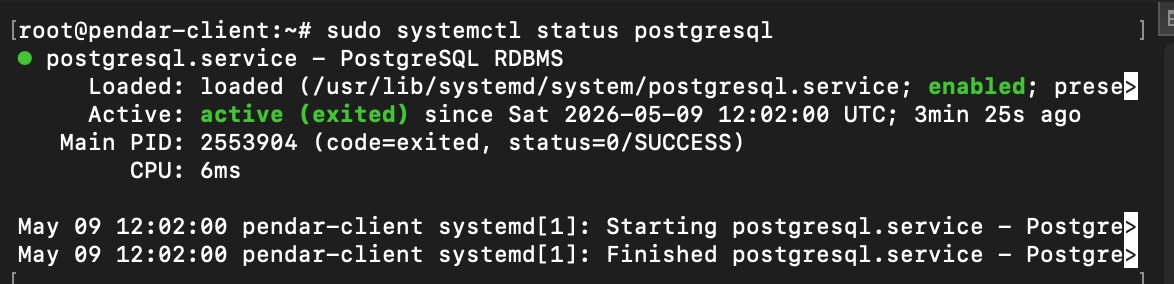

sudo systemctl status postgresql

check on the ps

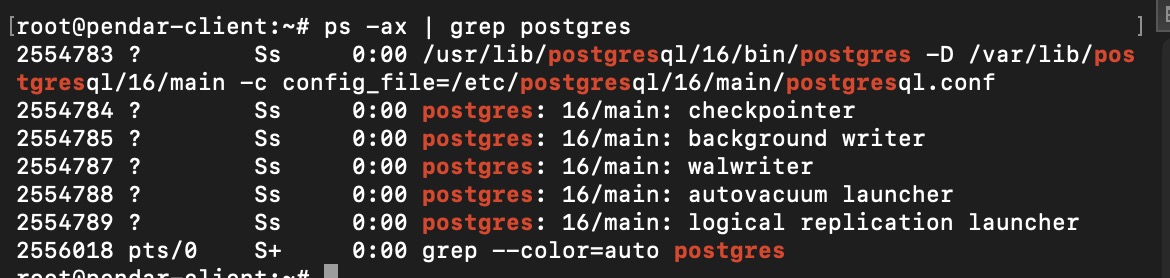

ps -ax | grep postgres

postimage100 Check if postgresql is running on the daemon

check on the specific postgres services to find the actual health status (replace 16-main with the actual installed postgresql version)

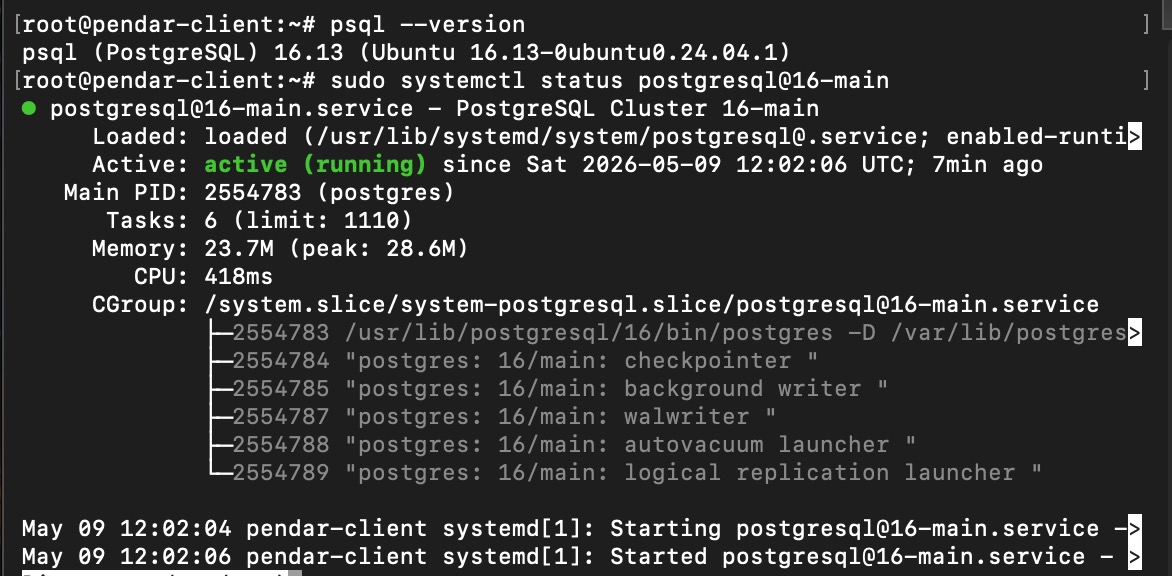

sudo systemctl status postgresql@16-main

postimage100 Check postgresql system status

or the health status of postgresql can also be checked on psql version command (recommended, as it show clear status of the postgresql system health)

postimage100 Postgresql health check via psql

set the default password for postgres user

sudo -i -u postgres

enter the postgresql shell

psql

set the default password for postgres user (root)

\password postgres

exit the shell

\q

whitelist allowed ip address to access the db (put asterisk * to allow all)

listen from all address (ip) on the postgresql.conf

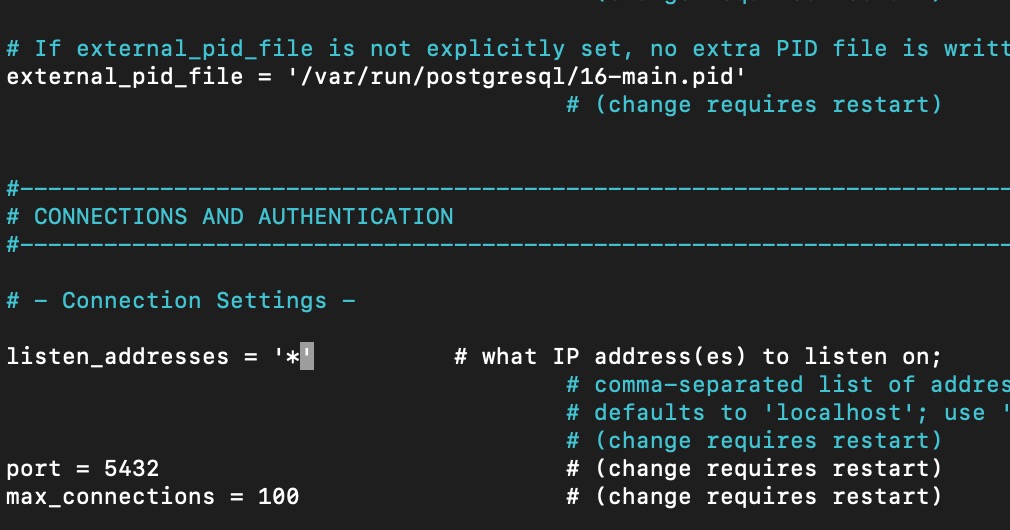

listen_addresses = '*'

postimage100 Accept incoming connection from all sources

edit the postgresql.conf using following command

sudo nano /etc/postgresql/16/main/postgresql.conf

allow for all ip on the pg_hba.conf

host    all             postgres        0.0.0.0/0      md5

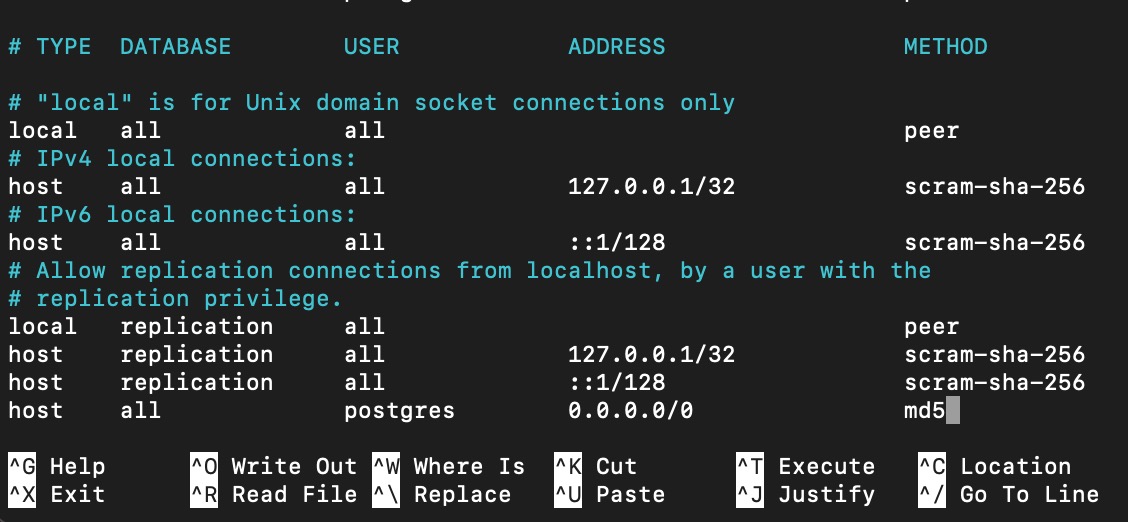

postimage100 Allow all ip addresses to access postgresql

edit the pg_hba.conf using following command

sudo nano /etc/postgresql/16/main/pg_hba.conf

restart postgreql services

sudo systemctl restart postgresql

Done, at this point postgresql can be accessed remotely.

note: on production scenario, it should only to list down authorized ip address. do not allow all connection from all machines at the production server.

to stop postgresql

sudo systemctl stop postgresql

Test Connection using Postgresql client

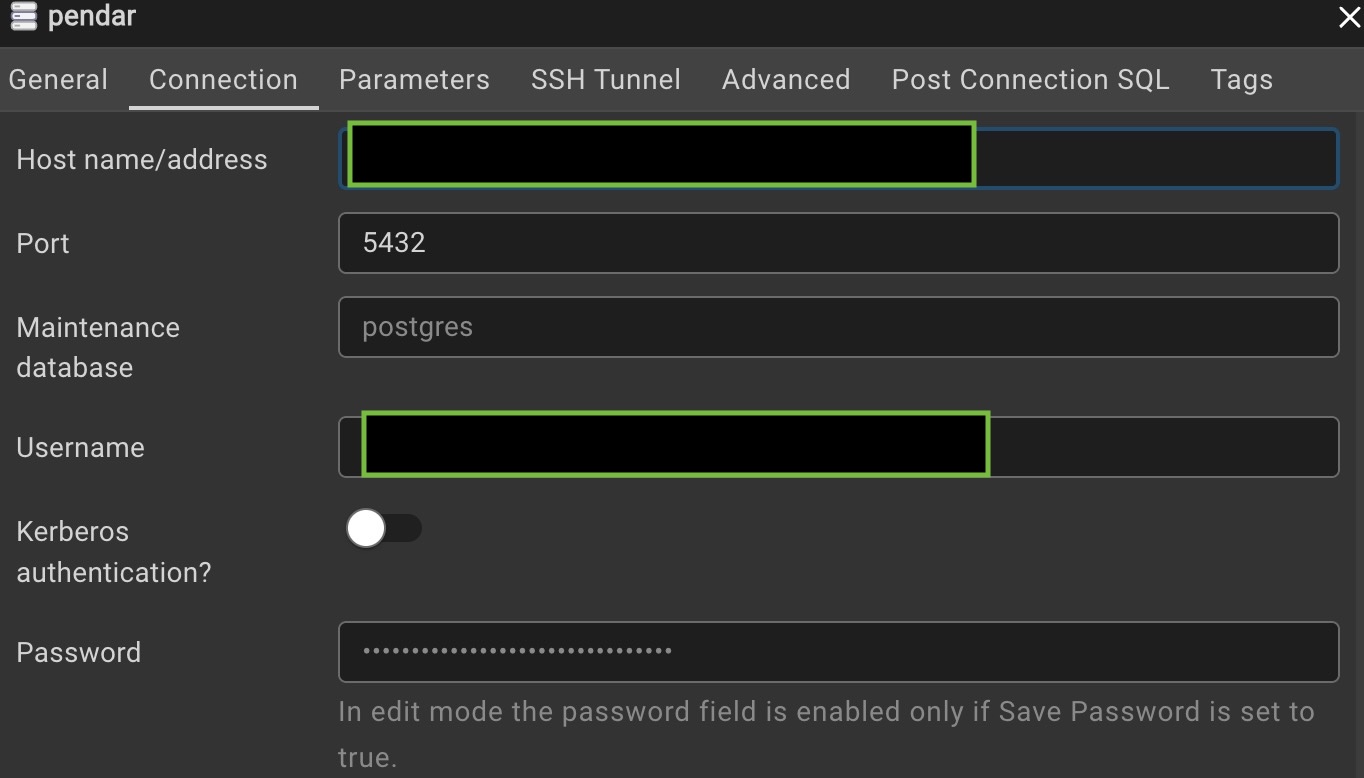

postimage100 Connect to postgresql instances using pgadmin tools

The most recommended way to connect into postgresql is through pgadmin. Create a new server and add the details of the server. use postgresql as the username and the password that we configured on the previous step. keep the post as it (5432) as didnt change the port.

right click on the target database and enter following query

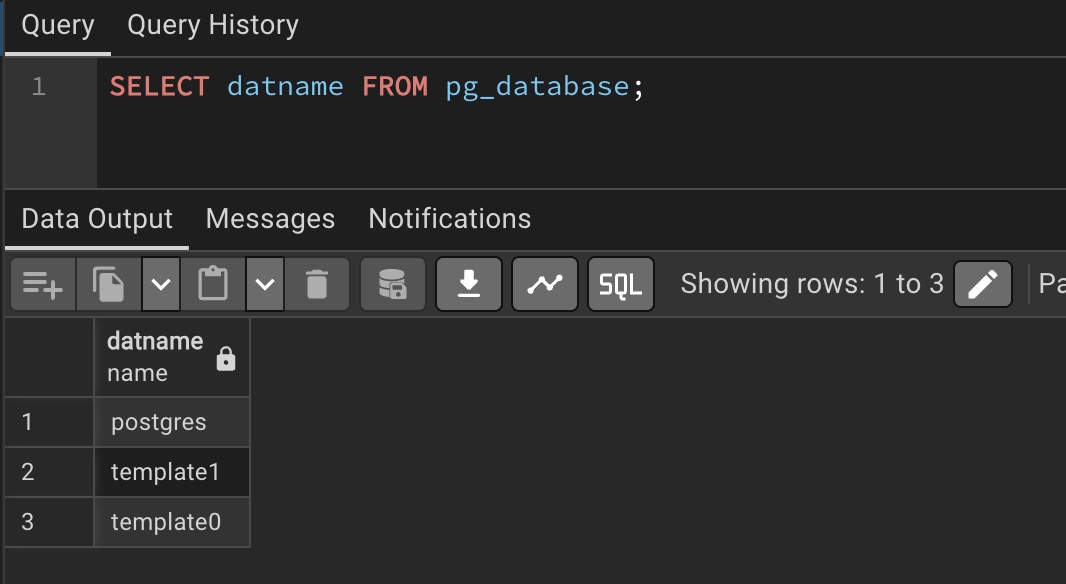

SELECT datname FROM pg_database;

it will listed down the available database on the postgresql instances. this is also an indication that postgresql is up and running and the connection is successfully established.

postimage100 List down all available database on postgresql instances, checking the root privilages

Limit postgresql resource utilization to fit with 512mb VM specs

Memory consumption allocation can be adjusted under postgresql.conf. it also recommended to limit the number of user connection as well on that file.

below is the best practices configuration to achieve such objectives.

config parameter value
max_connection 5
shared_buffers 384MB
work_mem 8MB

each of the parameter can be tuned to reduce the computing power of postgresql which resulting in the lower CPU and memory usages.

  1. max_connection: the more apps or user can connect to the database, the more cpu and memory consumed.
  2. shared_buffers: internal cache of postgresql. Smaller in memory cache will increase disk (persisted storage) I/O read but with trade off on lower memory consumption.
  3. work_mem: memory allocation per sql operations (JOIN, SELECT, FILTER, SORT, etc). need correct size of work_mem otherwise the sql operations will consume the disk I/O. Note that disk I/O has been stressed due to lower shared buffers.

once the file has been modified with above config, restart the postgresql server

sudo systemctl restart postgresql

execute following command to confirm if the config has been applied (after restarting the server)

sudo -u postgres psql -c "SHOW shared_buffers;"
sudo -u postgres psql -c "SHOW work_mem;"

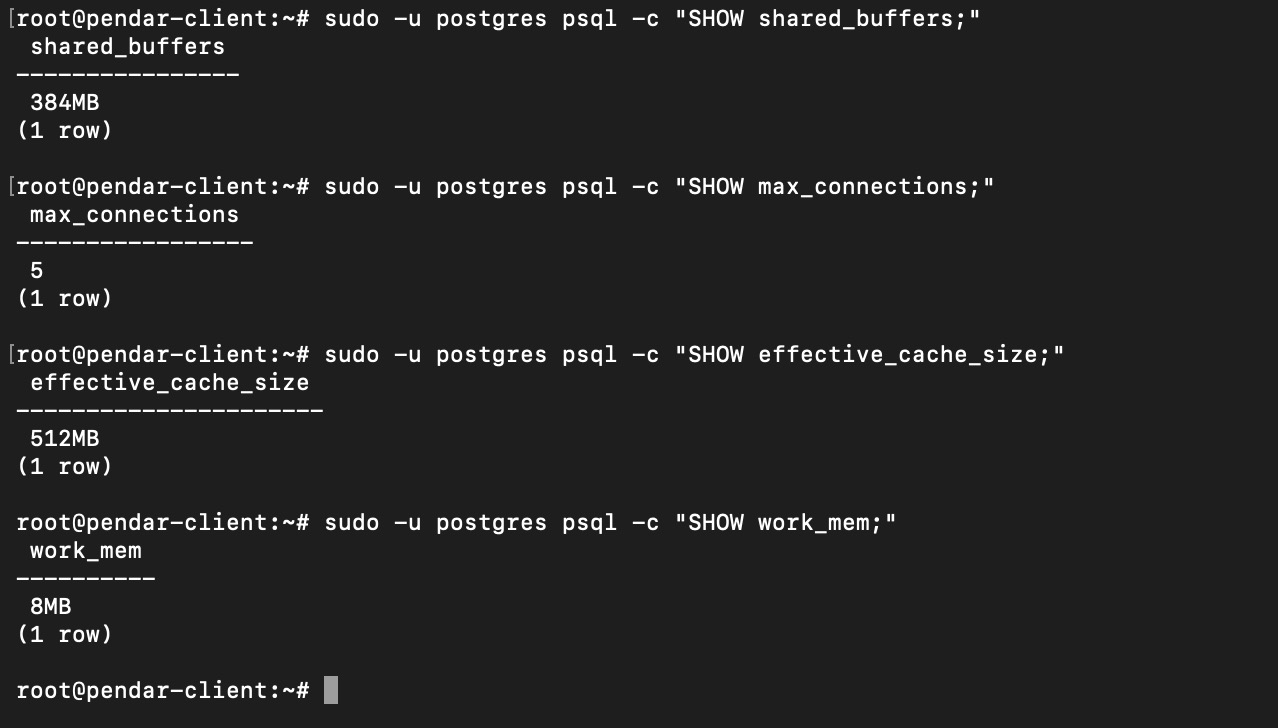

postimage100 Validate configuration updates on postgresql

and its done. The only way to test whether the configuration is working properly is by doing performance test.
